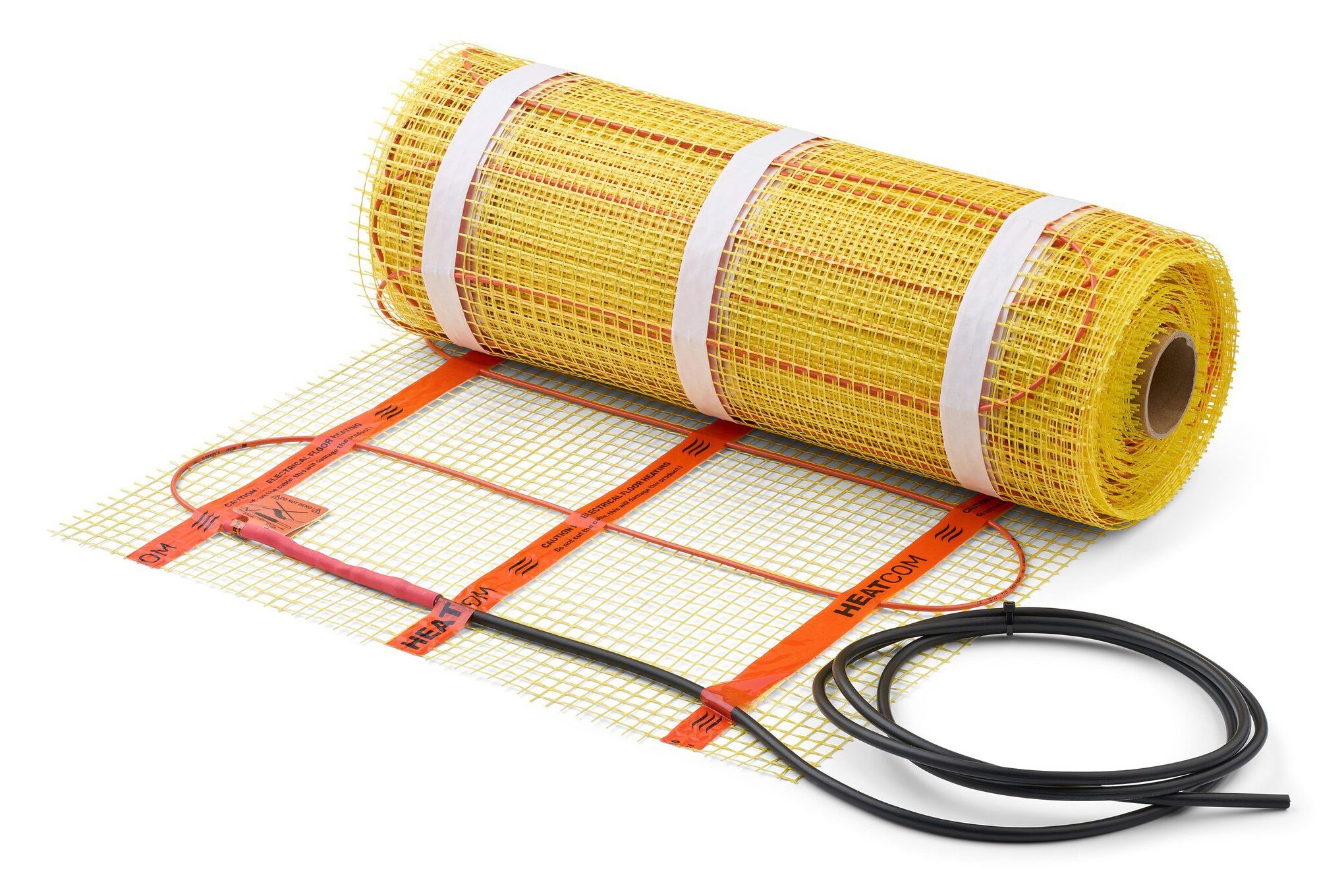

Heating Mat 3mm – 150 W/m²

Heating mat suitable for low-built installation on existing stable floors

• Ideal for rectangular rooms
• Easy-to-install, simple cut and turn design
• Adds minimal build height
• Highly reliable and resistant to high temperatures
• Maintenance-free
• Available in a wide range of sizes
• Designed in Denmark
• 25-year warranty

The heating mat has been developed for indoor use on all types of existing, stable flooring and is made with ultra-thin high-quality heating cable. The heating mat fixes to the floor with double-sided tape and must be fully embedded in a layer of screed, levelling compound or tile adhesive.

SELECTION OF POWER CLASS:

• 100 W/m² for general room heating
• 150 W/m² for bathrooms and rooms with “cool” floor coverings such as tiles.
• 190 W/m² where there is a need for extra high temperatures or where the insulation conditions mean that you need more output in the room in order to reach a comfortable room temperature.

Heating mats are available in many sizes, suitable for a wide range of applications. The cable in the heating mat is an earthed dual conductor cable.

APPLICATIONS

• Wet rooms
• Reg. housing
• Existing floor
• In screed

SIZES

• Ø3 mm 150 W/m² – 0,8 m² (0,5 x 1,7 m)
• Ø3 mm 150 W/m² – 1,2 m² (0,5 x 2,4 m)
• Ø3 mm 150 W/m² – 1,6 m² (0,5 x 3,2 m)
• Ø3 mm 150 W/m² – 2,2 m² (0,5 x 4,3 m)
• Ø3 mm 150 W/m² – 2,5 m² (0,5 x 5,0 m)
• Ø3 mm 150 W/m² – 3,0 m² (0,5 x 6,0 m)
• Ø3 mm 150 W/m² – 3,4 m² (0,5 x 6,7 m)
• Ø3 mm 150 W/m² – 3,6 m² (0,5 x 7,2 m)
• Ø3 mm 150 W/m² – 4,2 m² (0,5 x 8,4 m)
• Ø3 mm 150 W/m² – 4,8 m² (0,5 x 9,6 m)
• Ø3 mm 150 W/m² – 5,4 m² (0,5 x 10,8 m)
• Ø3 mm 150 W/m²- 6,0 m² (0,5 x 12,0 m)
• Ø3 mm 150 W/m² – 6,8 m² (0,5 x 13,7 m)
• Ø3 mm 150 W/m² – 7,2 m² (0,5 x 14,4 m)
• Ø3 mm 150 W/m² – 8,0 m² (0,5 x 16,1 m)
• Ø3 mm 150 W/m² – 8,4 m² (0,5 x 16,8 m)
• Ø3 mm 150 W/m² – 9,5 m² (0,5 x 19,0 m)
• Ø3 mm 150 W/m² – 10,5 m² (0,5 x 21,0 m)
• Ø3 mm 150 W/m² – 11,3 m² (0,5 x 22,6 m)
• Ø3 mm 150 W/m² – 12,4 m² (0,5 x 24,8m)
• Ø3 mm 150 W/m² – 14,7 m² (0,5 x 29,4 m)

SPECIFICATIONS

• Voltage – 230 V – 50 Hz
• Cable diameter – Ø3,4 mm +/-0,3mm
• Inner conductor, insulation – Fluoropolymer
• Cold cable – 4 m
• Cable type – 2 wires + earth screen, LSZH
• Screen – Aluminium mylar tape and copper conductor
• Outer sheath – PVC
• Max. permissible cable temperature – 90° C
• Mesh – Coated fiberglass
• Building height – 5 mm over cable
• Warranty – 25 years
• Approval – CE, SEMKO, BEAB
• Standard – EN60335-2-96
• Tolerance resistance – -5 %/+10 %
• Tolerance lenght – +/- 2 %
