TP750

Simple touch thermostat with reliable control

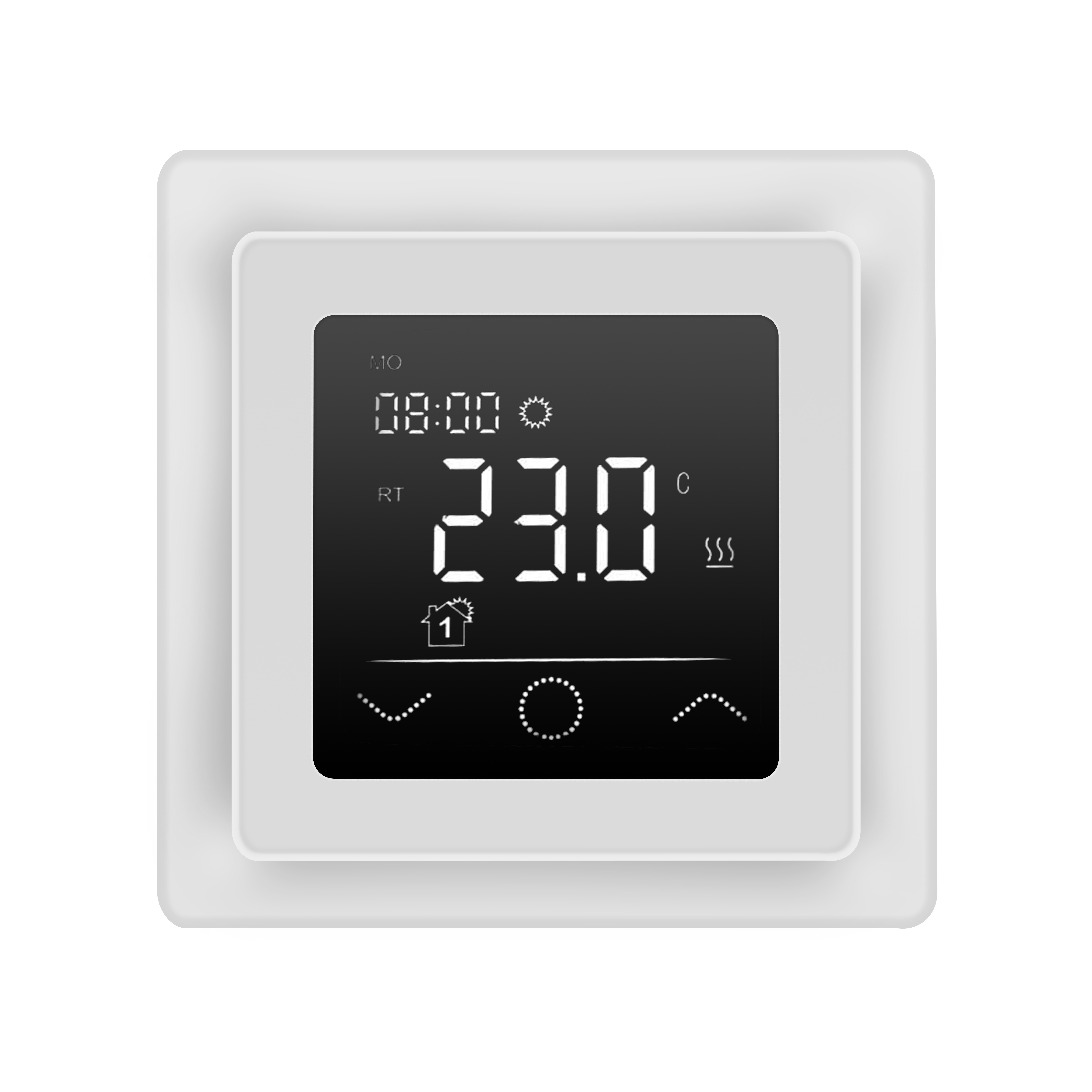

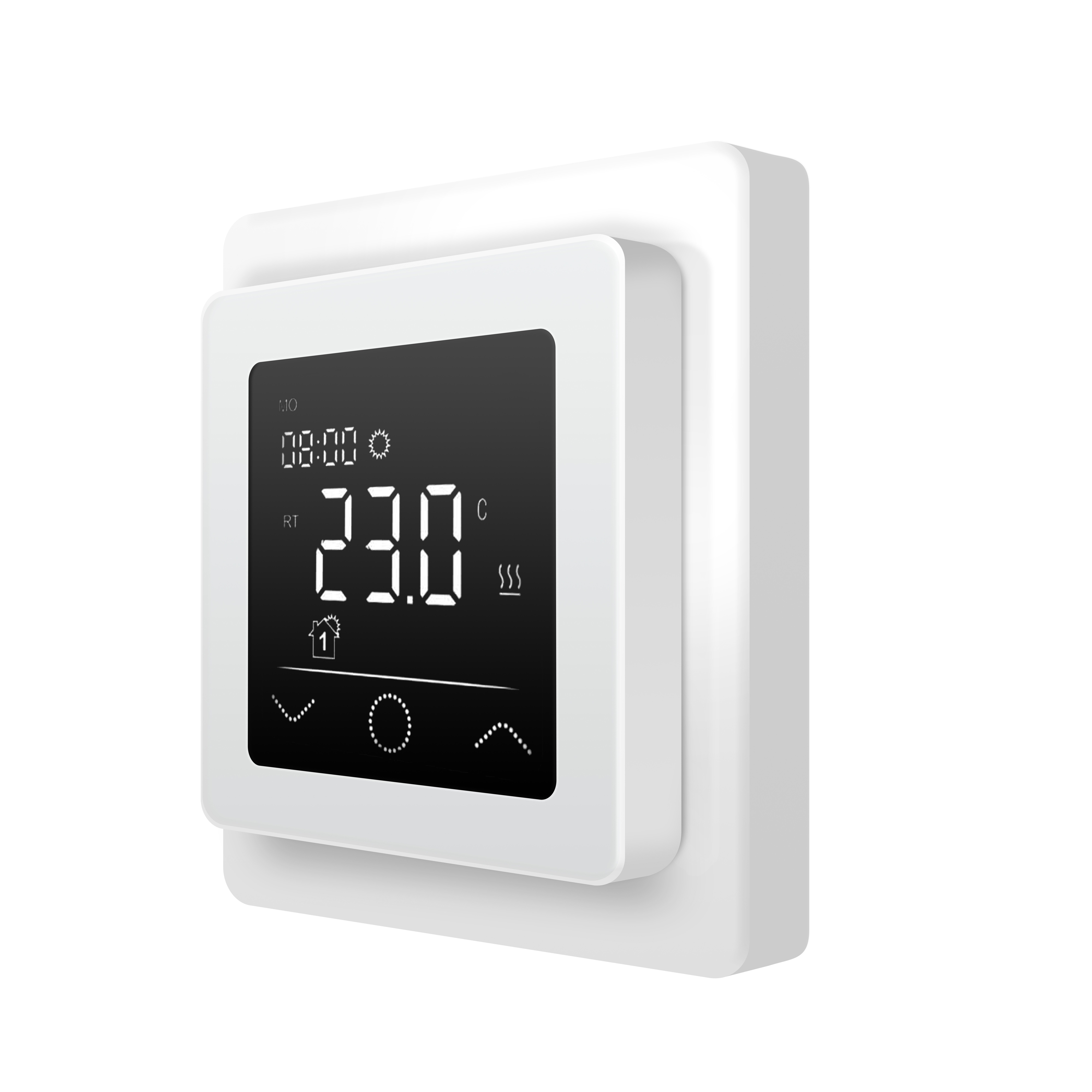

The TP750 is a digital, programmable touch thermostat designed for efficient control of electric underfloor heating systems. With its clean design and easy-to-read backlit display, it offers simple navigation and quick access to all key functions.

The intuitive interface makes it easy to adjust temperature settings and create weekly schedules. With four daily events, the heating can be adapted to everyday routines and unnecessary energy consumption can be reduced.

The thermostat supports both floor and room temperature control, making it suitable for a wide range of installations. Advanced settings allow the system to be fine-tuned according to user preferences, while adaptive heating and open window detection help improve energy efficiency.

A floor sensor (NTC 10 kΩ) is included, and the TP750 supports multiple sensor types, making it suitable for both new installations and replacement projects.

FEATURES

• Touch display with backlight
• Weekly programming with 4 daily events
• Floor and room sensor control
• Adaptive heating with self-learning function
• Open window detection
• Advanced setting options
• Support for multiple sensor types
• User-friendly interface

APPLICATION

• Electric floor heating

SPECIFICATIONS

• Supply voltage: 230 VAC / 50 Hz
• Maximum load: 16 A, recommended 13 A
• Power consumption: < 2 W
• IP class: IP21
• Temperature range: +5 °C to +40 °C
• Sensor settings: Floor / Room / Combined
• Floor sensor type: NTC 10 kΩ, length 3 m
• Supported sensor values: 3 / 5 / 6.8 / 12 / 15 / 20 / 22 / 33 / 47 kΩ
• Mounting: In-wall
• Dimensions: 86 x 86 x 48 mm
• Colours: White / Black
• Standards: CE / RoHS
