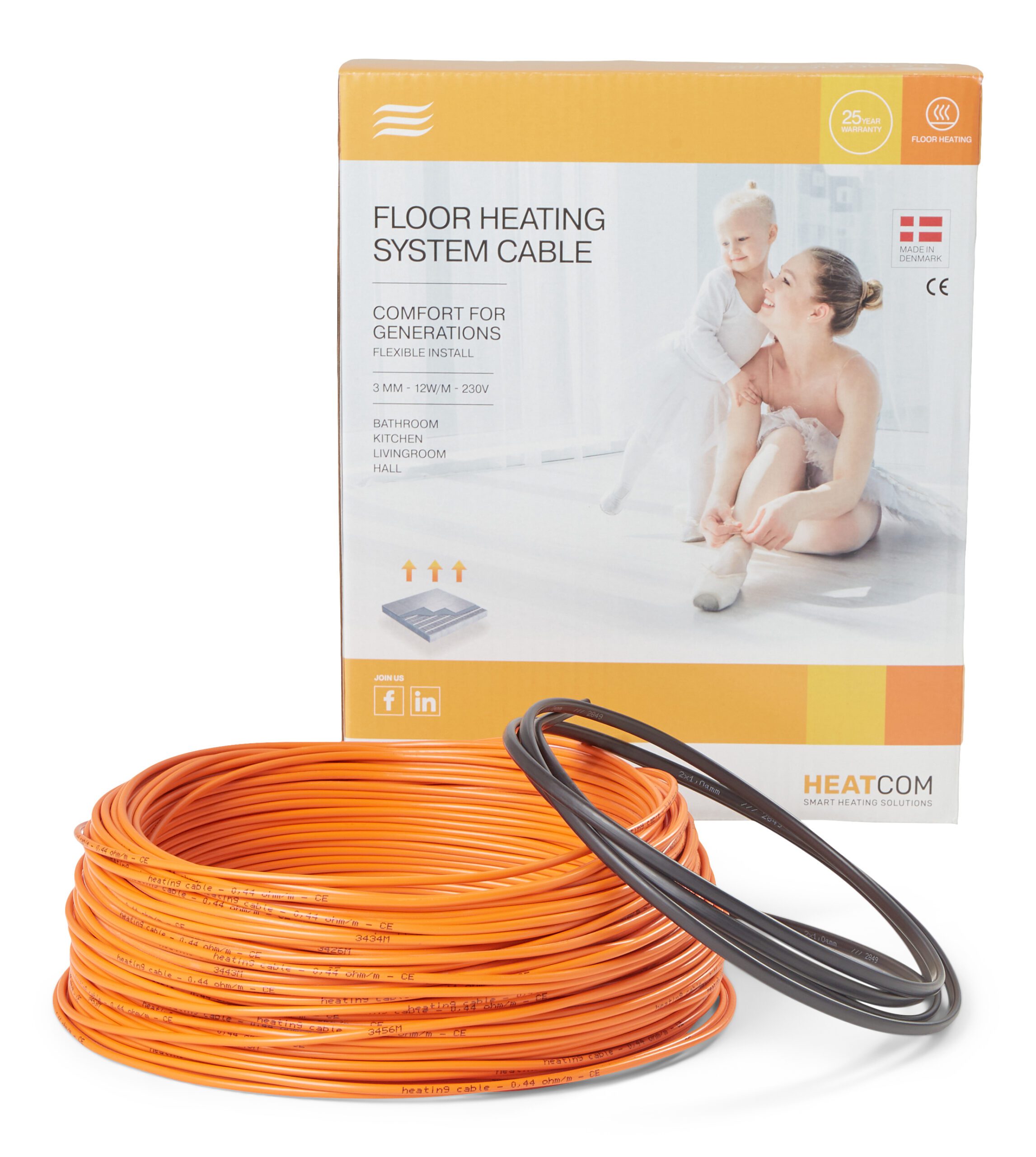

Heating cable 3 mm – 12 W/m

Ultra-thin heating cable designed for indoor installation


  • Suitable for installation beneath all types of flooring
  • Flexible and ideal for rooms with a complex configuration
  • Adds minimal build height
  • Highly reliable and resistant to high temperatures
  • Maintenance-free
  • Available in a wide range of sizes
  • Made in Denmark
  • Covered by a 25-year warranty


The ultra-thin heating cable is designed for indoor installation only and is to be fully embedded in a layer of screed, tile adhesive or levelling compound. The cable can be installed on an existing stable floor beneath any type of flooring.

The cables are fitted directly on an existing stable floor into the layer of tile adhesive or levelling compound, which adds minimal build height to your floor construction. Thereby the floor heats up as quickly as with heating mats, which makes it an efficient heating solution.

Heating cables are a flexible solution that allows you to adjust the power output per m² according to your individual need. The power output varies by the cable spacing, providing warmer and cooler zones if desired – the smaller the distance between heating cables, the more power output you get and vice versa.

Heating cables are available in many sizes, suitable for a wide range of applications. The cable is a dual conductor construction with high temperature insulation, earth screen and drain wire.



  • Bath room
  • Indoor
  • All floor coverings
  • Tile adhesive



  • 9.4 – 174 m



  • 120 – 2170 W



  • Power output – 12 W/m
  • Voltage – 230 V – 50Hz
  • Cable diameter – Ø3,4 +/-0,2mm
  • Heating conductor, insulation – Fluoropolymer
  • Cold cable – 2 conductors + earth, LSZH
  • Screen – Aluminium tape and copper drain wire
  • Outer sheath – PVC
  • Fire class, CPR – Eca
  • Max. permissible cable temperature – 90° C
  • Min. construction height – 5 mm above cable
  • Min. bending radius – 20 mm
  • Warranty – 25 years
  • Approval – CE • UKCA • Semko • BEAB
  • Standard – EN60335-2-96
  • Tolerance resistance – -5 %/+10 %
  • Tolerance lenght – +/- 2 %


See more in the datasheet


12 W/m

Heating cable 3 mm – 12 W/m

No. 5118XXXX
