MCS 750

Smart Wi-Fi thermostat with intuitive control

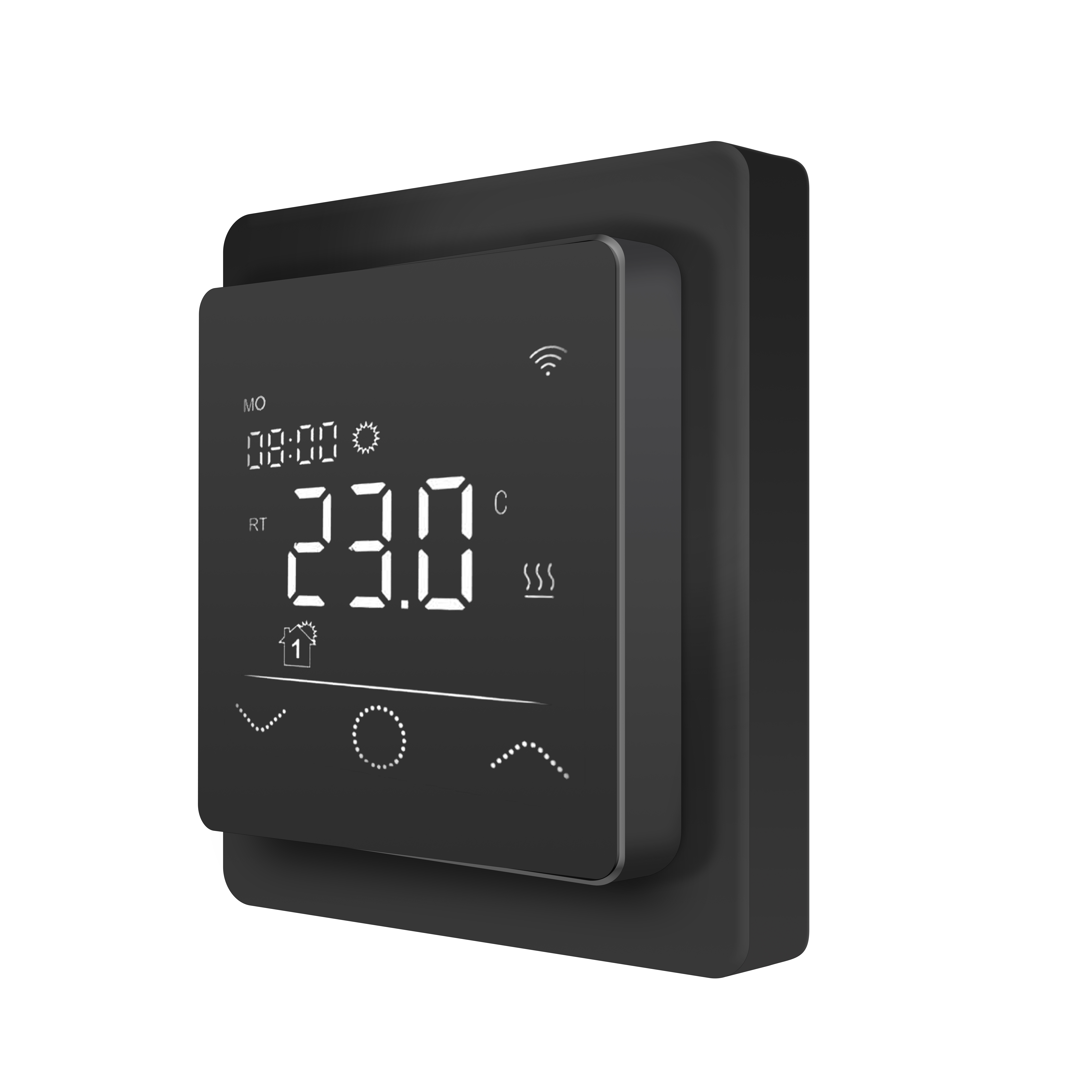

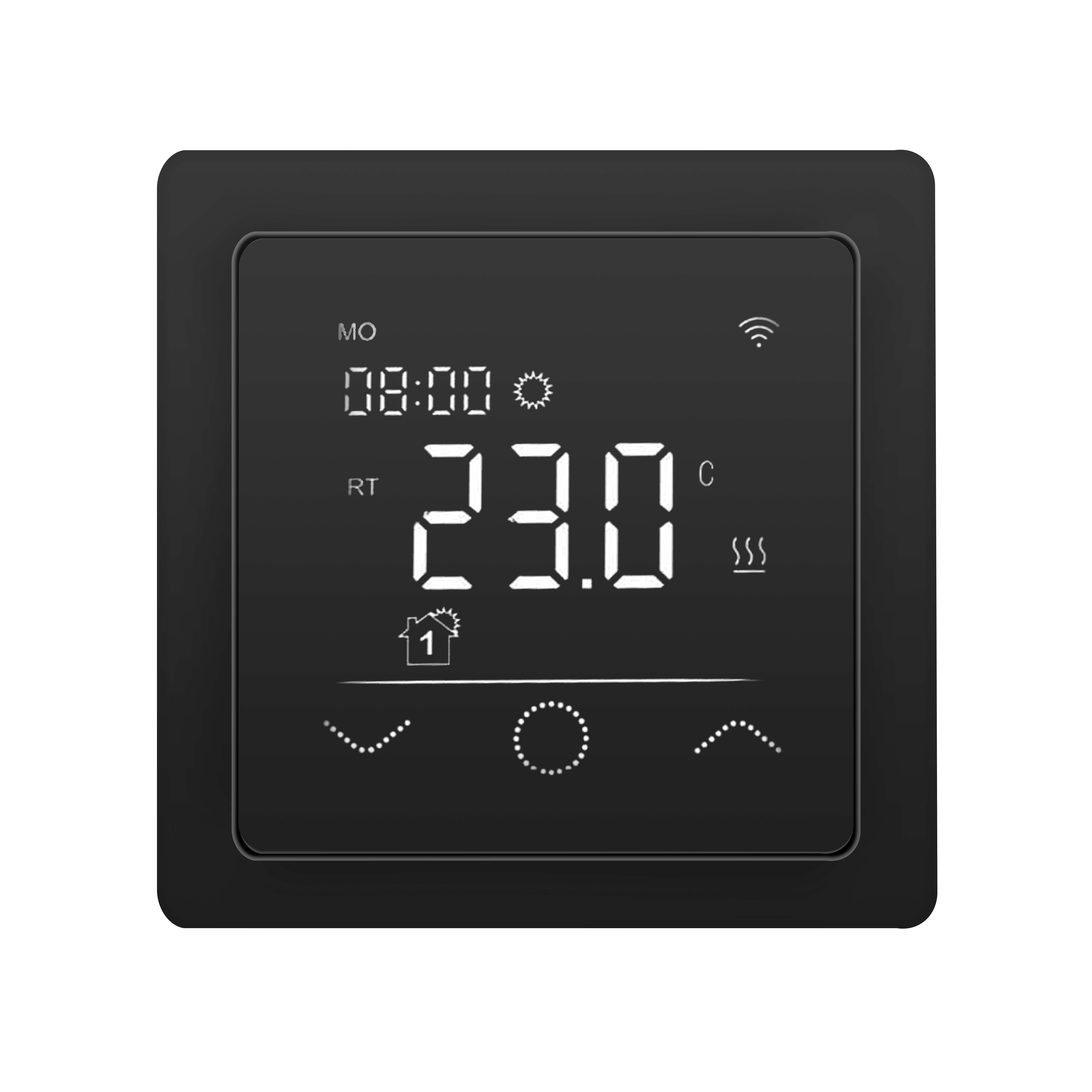

The MCS 750 is a modern, programmable Wi-Fi thermostat designed for easy and efficient control of electric underfloor heating systems. With its clean touch display and simple menu structure, daily operation and setup are straightforward for both installers and end users.

The thermostat can be controlled directly on the device or remotely via the Tuya Smart App, allowing users to adjust heating anytime, anywhere. With weekly programming and four daily events, it is easy to match heating to everyday routines and reduce unnecessary energy consumption.

The MCS 750 supports both floor and room temperature control, providing flexibility across different installations. Intelligent features such as adaptive heating and open window detection help optimize performance and improve energy efficiency.

A floor sensor (NTC 10 kΩ) is included, and the thermostat supports multiple sensor types, making it suitable for both new installations and replacements.

FEATURES

• Touch display with backlight
• Wi-Fi control via Tuya Smart App
• Weekly programming (4 events)
• Floor and room sensor control
• Adaptive heating (self-learning)
• Open window detection
• Multiple operating modes
• Clear and user-friendly interface

APPLICATION

• Electric Floor Heating

SPECIFICATIONS

• Supply Voltage – 230 VAC / 50 Hz
• Max. load – 16 A (recommended 13 A)
• Power consumption – < 2 W
• IP class – IP21
• Temperature range – +5° C … +40° C
• Sensor settings – Floor / Room / Combined
• Floor sensor type – NTC 10 kΩ, length 3 m (Supports: 3•5•6.8•12•15•20•22•33•47 kΩ)
• Wi-Fi – 2.4 GHz (IEEE 802.11 b/g/n)
• Mounting – In-wall
• Dimensions – 86 x 86 x 48 mm
• Colours – White • Black
• Standards – CE • RoHS
