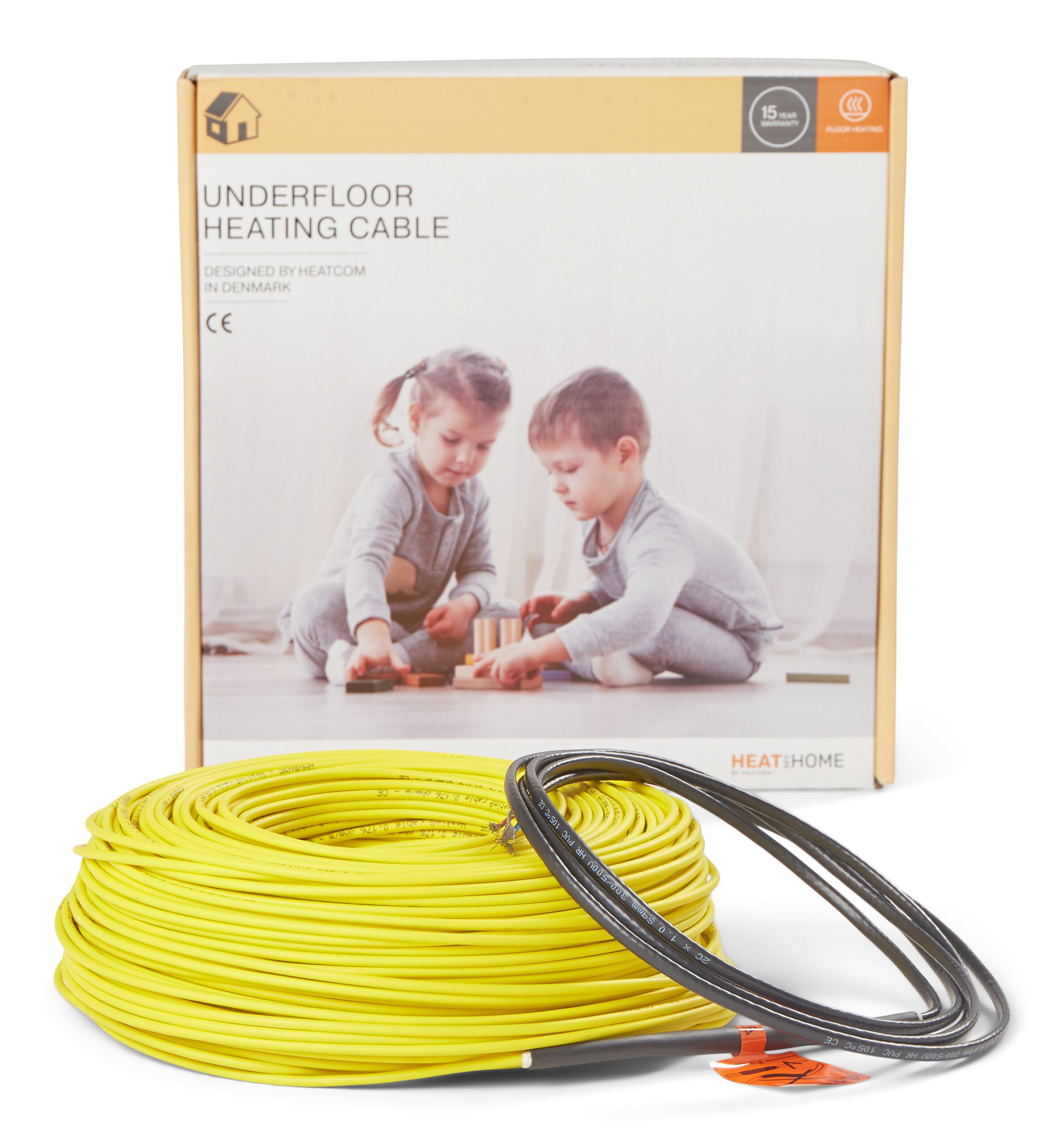

Heating cable 3,5 mm – 14 W/m

Suitable for installation under all floor types


  • Suitable for installation beneath all types of flooring
  • Flexible and ideal for rooms with a complex configuration
  • Provides quick thermal regulation of the floor
  • Adds minimal build height
  • Highly reliable and resistant to high temperatures
  • Maintenance-free
  • Available in a wide range of sizes
  • Covered by a 15-year warranty


The heating cable with a diameter of 3,5 mm is designed for floor heating on all types of existing and stable floor. Typically, its total height is 10 mm. The loose heating cable on a spool means great freedom to install it around fixed objects or in irregular-sized rooms. The heating cable is intermittently fixed to the surface of the floor and then covered.

The cables are fitted directly on an existing stable floor into the layer of tile adhesive or levelling compound, which adds minimal build height to your floor construction. Thereby the floor heats up as quickly as with heating mats, which makes it an efficient heating solution.

Heating cables are a flexible solution that allows you to adjust the power output per m² according to your individual need. The power output varies by the cable spacing, providing warmer and cooler zones if desired – the smaller the distance between heating cables, the more power output you get and vice versa.

Heating cables are available in 15 sizes, suitable for a wide range of applications. The cable is a Shielded 2-wire heating cable.



  • Bath room
  • Indoor
  • All floor coverings
  • Tile adhesive



  • 8,4 – 147 m



  • 120 – 2050 W



  • Power Output – 14 W/m
  • Voltage – 230 V – 50Hz
  • Cable diameter – Ø3,5 mm
  • Inner conductor, insulation – High-temperature TPE
  • Cold cable – 2,5 m
  • Approval – CE
  • Cable type – 2 wires + shield
  • Screen – Aluminium mylar tape and copper conductor
  • Outer sheath – Polyolefin
  • Maximum permissible cable tempe – 90 °C
  • Overall height – Min. 7 mm
  • Warranty – 15 years
  • Standard – EN60335-2-96
  • Tolerance resistance – -5%/+10%
  • Tolerance length – +/- 2%


14 W/m

Heating cable 3,5 mm – 14 W/m

No. 8029XXXX
